1 Pair E-Bike Full Twist Throttle Grips, 12V-72V Electric Bicycle Scooter Twist Handlebar with Three Speed and Reverse for Motorbike Motorcycle E-Bike Scooter (3+3+2 Pins)

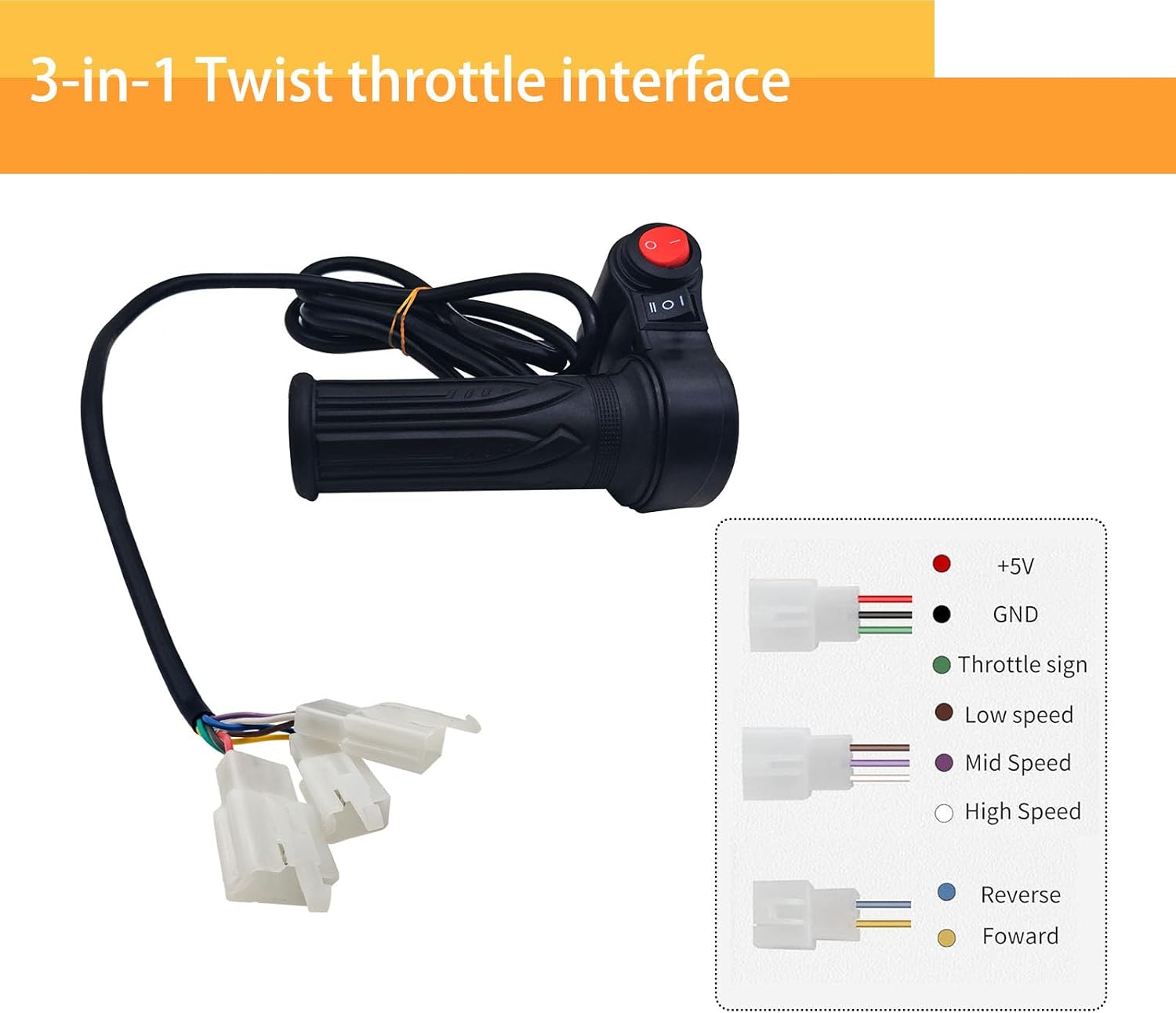

Specification: Product Name: 3 Speeds Throttle with Reverse Material:ABS+PVC Color: black Wire Length: approx. 1.5m / 59" Install Hole Diameter: approx. 2.3cm / 0.9" Working Voltage: 5V Output voltage: 0.8-4.2V Compatible With: Suitable for 12-72V Electric Bicycle/Scooter Fitment: Fit for 22.5mm diameter handle Eight Wires: - Red is for throttle positive +5v - Black is for throttle negative - Green is for twist throttle signal - Brown is for low speed - Purple is for mid speed - White is for high speed - Yellow is for forward - Blue is for reverse Package Include: 2 x Handlebars (1 x right throttle grip, 1 x left handle grip) 1 x 1.5m Wire Common sense for battery voltage Different battery materials, new/old condition of battery, and different controller data make battery voltage reflects differently. Please check your battery voltage data according to your battery. The maximum voltage indicates full charge. The low voltage indicates that the battery is exhausted. 12V ebike max voltage 12V, min voltage 9V 24V ebike max voltage 29V, min voltage 21V 36V ebike max voltage 42V, min voltage 29V 48V ebike max voltage 54V, min voltage 39V 60V ebike max voltage 72V, min voltage 49V 72V ebike max voltage 84V, min voltage 60V

• Universal Twist Throttle: This Bike Throttle Grip is fit for 12v-72v electric bicycles, scooters, tricycles, dirt bike. It can identify voltage automatically, timely indicating. (12V, 24V, 36V, 48V, 60V, 72V electric vehicles can be used directly) caution?check product information before order please
• Wide Application: The wire is 1.5m/59 inches, which can be cut according to your needs. The throttle grips is suitable for MY1020 Brushless Motor, Brushed Motor, Electric Bicycles, Scooters, Tricycles, Dirt bike, Motorcycle Electric Scooter and More
• Electric 3 Speed Throttle with Reverse: Electric twist throttle with Forward/ Reverse Function and 3 speeds, e-bike full twist throttle, handlebar throttle twist grips, accelerator for electric scooter. Connector types: 2.8 spade male connector, throttle connector: 3pins, reverse: 2pins, 3 speed: 3pins.
• High Quality: The unique designed bike handle grips is made of high quality ABS+PVC, provide a comfortable and non-slip grip, smooth throttle rotation, no jamming, and easy adjustment of speed during use
• Notice: When installing the non professionals, please pay attention to the line order, can not be connected to the wrong line, otherwise it is very easy to cause the broken of Holzer and LED tube; Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please in kind prevail
